Hands-on: Checkpoint Hunt

Let’s put arrays to work in a playable mini-game. The script will place 3 checkpoints around the player. The player can collect them in any order. Once all three are collected, the script rewards the player with a cash bonus.

Here’s the final script:

{$CLEO .cs}
nop

const REWARD = 5000
const NUM = 3
int last_index = NUM - 1

// read the player's current position as a base point
float base[3]
...base = get_char_coordinates $scplayer

// generate checkpoint positions around the player
float cx[NUM]
float cy[NUM]
float cz[NUM]

int i
for i = 0 to last_index
    float xoffset = generate_random_float_in_range {min} -25.0 {max} 25.0
    float yoffset = generate_random_float_in_range {min} -25.0 {max} 25.0
    cx[i] = base[0]
    cx[i] += xoffset
    cy[i] = base[1]
    cy[i] += yoffset
    cz[i] = base[2]
end

// track which checkpoints have been collected
int collected[NUM]
for i = 0 to last_index
    collected[i] = false
end

int remaining = NUM
print_formatted_now "Checkpoint Hunt! Find all %d markers." 3000 NUM

// main loop
while remaining > 0
    wait 0

    float pos[3]
    ...pos = get_char_coordinates $scplayer

    for i = 0 to last_index
        // skip already collected checkpoints
        if collected[i] == true
        then
            continue
        end


        if locate_char_on_foot_3d $scplayer cx[i] cy[i] cz[i] {xRadius} 3.0 {yRadius} 3.0 {zRadius} 3.0 {drawSphere} true
        then
            collected[i] = true
            remaining -= 1
            print_formatted_now "Got one! %d remaining." 2000 remaining
        end
    end
end

add_score {player} 0 REWARD
print_formatted_now "All checkpoints collected! +$%d" 3000 REWARD

terminate_this_script

Let’s walk through it section by section.

Constants and Setup

const REWARD = 5000
const NUM = 3
int last_index = NUM - 1

Two constants control the script’s behavior. NUM is the number of checkpoints and REWARD is the cash prize. Changing these values at the top instantly adjusts the game. The variable last_index stores the last valid index for the array to be used with FOR loops.

Generating Checkpoints

First, we read the player’s current position into a base point using the spread operator:

float base[3]
...base = get_char_coordinates $scplayer

Then three parallel arrays store the X, Y, and Z of each checkpoint. A for loop copies the player’s base position into each one and adds a random offset:

float cx[NUM]
float cy[NUM]
float cz[NUM]

int i
for i = 0 to last_index
    float xoffset = generate_random_float_in_range {min} -25.0 {max} 25.0
    float yoffset = generate_random_float_in_range {min} -25.0 {max} 25.0
    cx[i] = base[0]
    cx[i] += xoffset
    cy[i] = base[1]
    cy[i] += yoffset
    cz[i] = base[2]
end

Each checkpoint gets a random X and Y offset between -25 and +25 units from the player. The Z coordinate stays the same so they’re on the same ground level.

Tracking Collection

An integer array marks which checkpoints have been collected. 0 means not yet, 1 means collected:

int collected[NUM]
for i = 0 to last_index
    collected[i] = false
end

int remaining = NUM

The variable remaining counts down as the player picks them up.

The Main Loop

The while loop runs until all checkpoints are collected:

while remaining > 0
    wait 0
    ...
end

Inside, the script gets the player’s current position every frame and loops through each checkpoint:

for i = 0 to last_index
    if collected[i] == true
    then
        continue
    end
    ...
end

Already-collected checkpoints are skipped with continue — exactly as we learned in Chapter V.

For each uncollected checkpoint, the script uses locate_char_on_foot_3d to check if the player is within 3 units. The drawSphere parameter set to true makes the game draw a visible marker at the checkpoint position:

if locate_char_on_foot_3d $scplayer cx[i] cy[i] cz[i] {xRadius} 3.0 {yRadius} 3.0 {zRadius} 3.0 {drawSphere} true
then
    collected[i] = true
    remaining -= 1
    print_formatted_now "Got one! %d remaining." 2000 remaining
end

The Reward

Once the loop exits (all collected), the player gets the prize:

add_score {player} 0 REWARD
print_formatted_now "All checkpoints collected! +$%d" 3000 REWARD

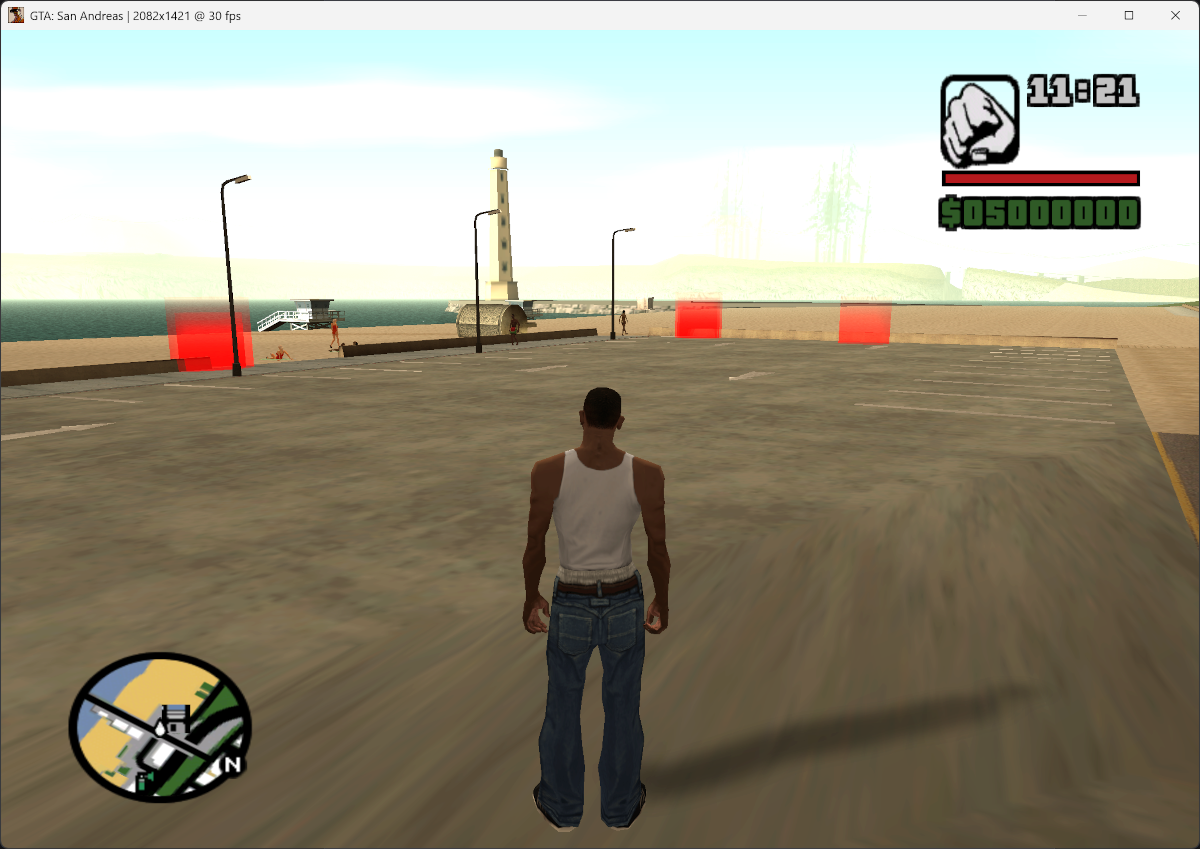

Save the file as checkpoint_hunt.txt, press F7 to compile, and head into the game. Walk around and find all three markers!

What’s next?

Try these modifications and recompile:

Change the reward
Change NUM to 5 for a longer hunt.
Widen the random offset range from 25.0 to 100.0 to spread the checkpoints farther apart.
Replace true with false in locate_char_on_foot_3d to hide the markers and make it a blind hunt.
